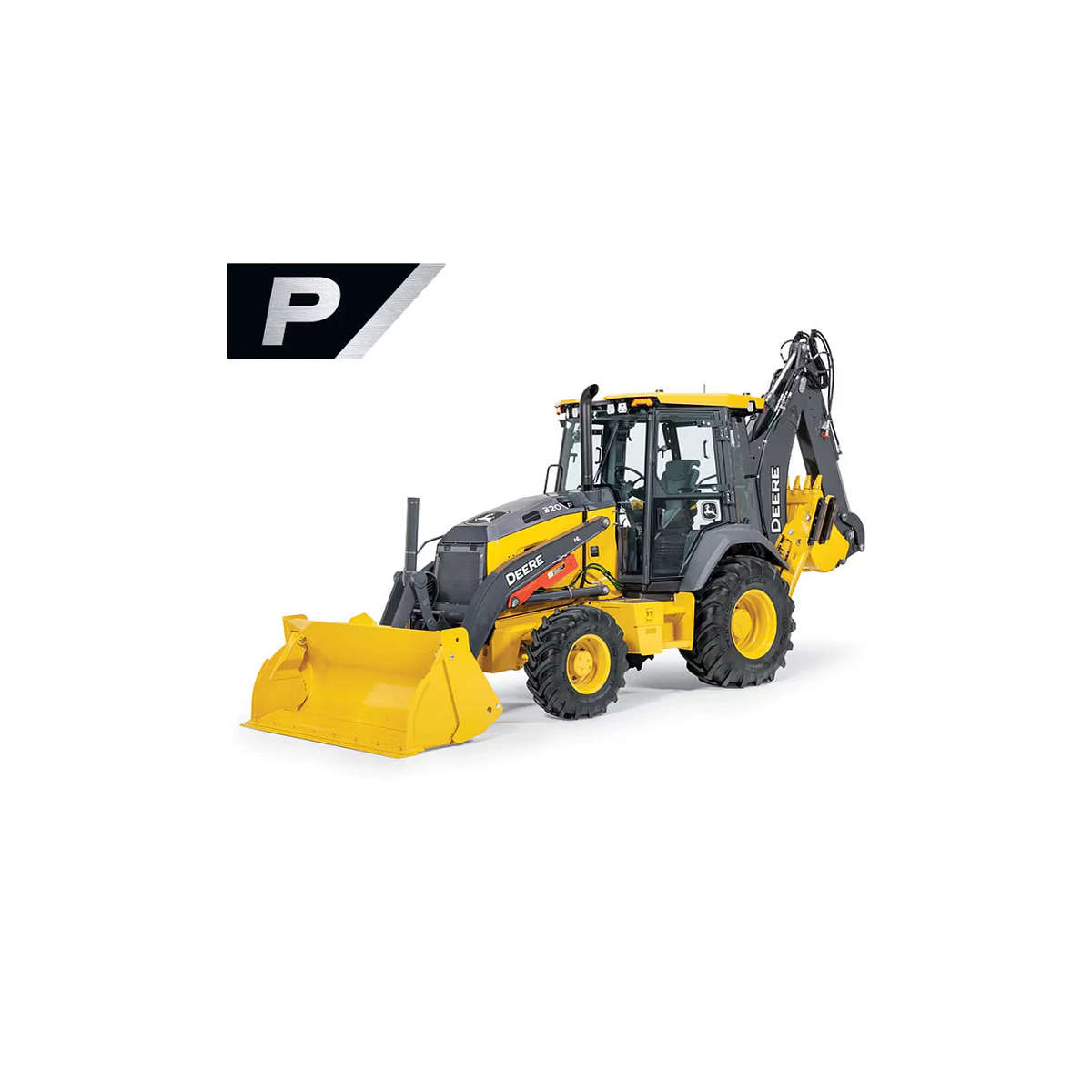

John Deere 320 P-Tier

Tractors

Backhoes

Starting at

175,833.00

Starting at

Key Features

Net Peak Power: 113 hp (84 kW) at 1,900 rpm
Max. Standard Dipperstick Digging Depth: 14 ft, 3 in. (4.33 m) Standard Lift and 15 ft, 3 in. (4.65 m) Heavy-Lift (HL) Option
Operating Weight: 17,081 lb. (7748 kg) Standard Lift and 17,383 lb. (7885 kg) HL Option
Overall Length, Transport 24 ft, 6 in. (7.48 m)

Features

<div class="accordion-wrap"><div class="accordion2_component"><div class="accordion2_top"><div class="text-size-medium text-weight-bold">Advanced Load‑Sensing Hydraulics</div><div class="accordion2_icon w-embed"><svg width="100%" height="100%" viewBox="0 0 32 32" fill="none" xmlns="http://www.w3.org/2000/svg"><path d="M25.3333 15.667V16.3336C25.3333 16.7018 25.0349 17.0003 24.6667 17.0003H17V24.667C17 25.0351 16.7015 25.3336 16.3333 25.3336H15.6667C15.2985 25.3336 15 25.0351 15 24.667V17.0003H7.3333C6.96511 17.0003 6.66663 16.7018 6.66663 16.3336V15.667C6.66663 15.2988 6.96511 15.0003 7.3333 15.0003H15V7.33365C15 6.96546 15.2985 6.66699 15.6667 6.66699H16.3333C16.7015 6.66699 17 6.96546 17 7.33365V15.0003H24.6667C25.0349 15.0003 25.3333 15.2988 25.3333 15.667Z" fill="currentColor"></path></svg></div></div><div style="width: 1118px; height: 0px;" class="accordion2_bottom"><div class="margin-bottom margin-small"><div><p>Pressure‑compensated, load‑sensing (PCLS) hydraulics deliver smooth control, excellent multifunctioning, and increased craning capacity—helping operators work efficiently at lower engine speeds with precise machine response.</p><img src="https://johndeere.widen.net/content/kltkwqt5od/png/r4x001869_rrd.png" alt="" loading="lazy"></div></div></div></div><div class="accordion2_component"><div class="accordion2_top"><div class="text-size-medium text-weight-bold">High‑Performance 4.5L Engine</div><div class="accordion2_icon w-embed"><svg width="100%" height="100%" viewBox="0 0 32 32" fill="none" xmlns="http://www.w3.org/2000/svg"><path d="M25.3333 15.667V16.3336C25.3333 16.7018 25.0349 17.0003 24.6667 17.0003H17V24.667C17 25.0351 16.7015 25.3336 16.3333 25.3336H15.6667C15.2985 25.3336 15 25.0351 15 24.667V17.0003H7.3333C6.96511 17.0003 6.66663 16.7018 6.66663 16.3336V15.667C6.66663 15.2988 6.96511 15.0003 7.3333 15.0003H15V7.33365C15 6.96546 15.2985 6.66699 15.6667 6.66699H16.3333C16.7015 6.66699 17 6.96546 17 7.33365V15.0003H24.6667C25.0349 15.0003 25.3333 15.2988 25.3333 15.667Z" fill="currentColor"></path></svg></div></div><div style="width: 1118px; height: 0px;" class="accordion2_bottom"><div class="margin-bottom margin-small"><div><p>Powered by the John Deere PowerTech™ EWL 4.5L engine, the 320 P‑Tier delivers strong power and torque without the need for a diesel particulate filter, helping improve reliability, simplify maintenance, and reduce operating costs.</p><img src="https://johndeere.widen.net/content/tlcmhfg4oo/png/r4x001822-rrd-2048x1365.png" alt="310 G-Tier Backhoe operates along a roadside construction site, pushing soil with a wide front blade in the foreground." loading="lazy"></div></div></div></div><div class="accordion2_component"><div class="accordion2_top"><div class="text-size-medium text-weight-bold">Heavy‑Lift Capability for Demanding Jobs</div><div class="accordion2_icon w-embed"><svg width="100%" height="100%" viewBox="0 0 32 32" fill="none" xmlns="http://www.w3.org/2000/svg"><path d="M25.3333 15.667V16.3336C25.3333 16.7018 25.0349 17.0003 24.6667 17.0003H17V24.667C17 25.0351 16.7015 25.3336 16.3333 25.3336H15.6667C15.2985 25.3336 15 25.0351 15 24.667V17.0003H7.3333C6.96511 17.0003 6.66663 16.7018 6.66663 16.3336V15.667C6.66663 15.2988 6.96511 15.0003 7.3333 15.0003H15V7.33365C15 6.96546 15.2985 6.66699 15.6667 6.66699H16.3333C16.7015 6.66699 17 6.96546 17 7.33365V15.0003H24.6667C25.0349 15.0003 25.3333 15.2988 25.3333 15.667Z" fill="currentColor"></path></svg></div></div><div style="width: 1118px; height: 0px;" class="accordion2_bottom"><div class="margin-bottom margin-small"><div><p>An available Heavy‑Lift option increases lifting and craning performance, making the 320 P‑Tier well‑suited for underground utility work, material handling, and applications that demand extra stability and strength.</p><img src="https://johndeere.widen.net/content/ltc3kkgcmf/png/r4x002935-rrd-2048-1365.png" alt="A backhoe loader is positioned over a narrow trench at a flat, open construction site, with stabilizer legs extended on the dirt surface." loading="lazy"></div></div></div></div></div>

Specifications

<div class="accordion-wrap"><div class="accordion2_component"><div class="accordion2_top"><div class="text-size-medium text-weight-bold">Cooling</div><div class="accordion2_icon w-embed"><svg width="100%" height="100%" viewBox="0 0 32 32" fill="none" xmlns="http://www.w3.org/2000/svg"><path d="M25.3333 15.667V16.3336C25.3333 16.7018 25.0349 17.0003 24.6667 17.0003H17V24.667C17 25.0351 16.7015 25.3336 16.3333 25.3336H15.6667C15.2985 25.3336 15 25.0351 15 24.667V17.0003H7.3333C6.96511 17.0003 6.66663 16.7018 6.66663 16.3336V15.667C6.66663 15.2988 6.96511 15.0003 7.3333 15.0003H15V7.33365C15 6.96546 15.2985 6.66699 15.6667 6.66699H16.3333C16.7015 6.66699 17 6.96546 17 7.33365V15.0003H24.6667C25.0349 15.0003 25.3333 15.2988 25.3333 15.667Z" fill="currentColor"></path></svg></div></div><div style="width: 1118px; height: 0px;" class="accordion2_bottom"><div class="margin-bottom margin-small"><table class='custom-table-style'><tbody><tr><td><h5>Engine Coolant Rating</h5></td><td><p>-40 °F</p></td></tr><tr><td><h5>Engine Coolant Rating</h5></td><td><p>-40 ℃</p></td></tr><tr><td><h5>Engine Oil Cooler Type</h5></td><td><p>Oil-to-water</p></td></tr><tr><td><h5>Engine Radiator (Fins Per In.)</h5></td><td><p>10</p></td></tr><tr><td><h5>Fan Type</h5></td><td><p>Electronically controlled, variable rate, suction type cooling fan, Standard</p></td></tr><tr><td><h5>Hydraulic Cooler Type</h5></td><td><p>Oil-to-air</p></td></tr><tr><td><h5>Transmission Cooler Type</h5></td><td><p>oil-to-water</p></td></tr></tbody></table></div></div></div><div class="accordion2_component"><div class="accordion2_top"><div class="text-size-medium text-weight-bold">Electrical</div><div class="accordion2_icon w-embed"><svg width="100%" height="100%" viewBox="0 0 32 32" fill="none" xmlns="http://www.w3.org/2000/svg"><path d="M25.3333 15.667V16.3336C25.3333 16.7018 25.0349 17.0003 24.6667 17.0003H17V24.667C17 25.0351 16.7015 25.3336 16.3333 25.3336H15.6667C15.2985 25.3336 15 25.0351 15 24.667V17.0003H7.3333C6.96511 17.0003 6.66663 16.7018 6.66663 16.3336V15.667C6.66663 15.2988 6.96511 15.0003 7.3333 15.0003H15V7.33365C15 6.96546 15.2985 6.66699 15.6667 6.66699H16.3333C16.7015 6.66699 17 6.96546 17 7.33365V15.0003H24.6667C25.0349 15.0003 25.3333 15.2988 25.3333 15.667Z" fill="currentColor"></path></svg></div></div><div style="width: 1118px; height: 0px;" class="accordion2_bottom"><div class="margin-bottom margin-small"><table class='custom-table-style'><tbody><tr><td><h5>Alternator Rating</h5></td><td><p>145 amp</p></td></tr><tr><td><h5>Battery Capacity (1 Battery)</h5></td><td><p>950 CCA</p></td></tr><tr><td><h5>Battery Capacity (2 Batteries)</h5></td><td><p>1900 CCA</p></td></tr><tr><td><h5>Lighting Options</h5></td><td><p>10 halogen: 4 front, 4 rear, and 2 side docking (32,500 candlepower each); turn signals and flashers: 2 front and 2 rear; stop and taillights; and 2 rear reflectors; factory installed option for 2 LED spot lights and 8 LED flood lights in lieu of the standard halogen light package </p></td></tr><tr><td><h5>Number Of Batteries</h5></td><td><p>2</p></td></tr><tr><td><h5>Reserve Capacity (1 Battery)</h5></td><td><p>175 min.</p></td></tr><tr><td><h5>Reserve Capacity (2 Batteries)</h5></td><td><p>350 min.</p></td></tr><tr><td><h5>Voltage</h5></td><td><p>12 V</p></td></tr></tbody></table></div></div></div><div class="accordion2_component"><div class="accordion2_top"><div class="text-size-medium text-weight-bold">Engine</div><div class="accordion2_icon w-embed"><svg width="100%" height="100%" viewBox="0 0 32 32" fill="none" xmlns="http://www.w3.org/2000/svg"><path d="M25.3333 15.667V16.3336C25.3333 16.7018 25.0349 17.0003 24.6667 17.0003H17V24.667C17 25.0351 16.7015 25.3336 16.3333 25.3336H15.6667C15.2985 25.3336 15 25.0351 15 24.667V17.0003H7.3333C6.96511 17.0003 6.66663 16.7018 6.66663 16.3336V15.667C6.66663 15.2988 6.96511 15.0003 7.3333 15.0003H15V7.33365C15 6.96546 15.2985 6.66699 15.6667 6.66699H16.3333C16.7015 6.66699 17 6.96546 17 7.33365V15.0003H24.6667C25.0349 15.0003 25.3333 15.2988 25.3333 15.667Z" fill="currentColor"></path></svg></div></div><div style="width: 1118px; height: 0px;" class="accordion2_bottom"><div class="margin-bottom margin-small"><table class='custom-table-style'><tbody><tr><td><h5>Air Cleaner</h5></td><td><p>Dual stage dry type with safety element and evacuator valve</p></td></tr><tr><td><h5>Bore and Stroke</h5></td><td><p>4.19 x 5.00 in.</p></td></tr><tr><td><h5>Bore and Stroke</h5></td><td><p>106.43 x 127.00 mm</p></td></tr><tr><td><h5>Cylinders</h5></td><td><p>4</p></td></tr><tr><td><h5>Displacement</h5></td><td><p>276 cu in.</p></td></tr><tr><td><h5>Displacement</h5></td><td><p>4.52 L</p></td></tr><tr><td><h5>Fuel System</h5></td><td><p>Level 34 electronic fuel system with Denso high pressure common rail</p></td></tr><tr><td><h5>Gross Peak Power At Peak Power Speed</h5></td><td><p>115 hp</p></td></tr><tr><td><h5>Gross Peak Power At Peak Power Speed</h5></td><td><p>85.8 kW</p></td></tr><tr><td><h5>Gross Peak Torque At Peak Torque Speed</h5></td><td><p>344 lb-ft</p></td></tr><tr><td><h5>Gross Peak Torque At Peak Torque Speed</h5></td><td><p>466.55 Nm</p></td></tr><tr><td><h5>Gross Power At Rated Speed</h5></td><td><p>111 hp</p></td></tr><tr><td><h5>Gross Power At Rated Speed</h5></td><td><p>82.8 kW</p></td></tr><tr><td><h5>Lubrication</h5></td><td><p>Pressure system with spin-on filter and cooler</p></td></tr><tr><td><h5>Manufacturer</h5></td><td><p>John Deere</p></td></tr><tr><td><h5>Model</h5></td><td><p>PowerTech™ EWL 4.5L turbocharged</p></td></tr><tr><td><h5>Net Peak Power At Peak Power Speed (ISO9249)</h5></td><td><p>84.3 kW</p></td></tr><tr><td><h5>Net Peak Torque At Peak Torque Speed (ISO9249)</h5></td><td><p>339 lb-ft</p></td></tr><tr><td><h5>Net Peak Torque At Peak Torque Speed (ISO9249)</h5></td><td><p>459.6 Nm</p></td></tr><tr><td><h5>Net Power At Rated Speed (ISO9249)</h5></td><td><p>109 hp</p></td></tr><tr><td><h5>Net Power At Rated Speed (ISO9249)</h5></td><td><p>82.3 kW</p></td></tr><tr><td><h5>Net Torque Rise</h5></td><td><p>30 %</p></td></tr><tr><td><h5>Non-Road Emission Standards</h5></td><td><p>EPA Final Tier 4/EU Stage IV</p></td></tr><tr><td><h5>Oil Specification</h5></td><td><p>JD Torq-Gard or equivalent</p></td></tr><tr><td><h5>Peak Power Speed</h5></td><td><p>1900 rpm</p></td></tr><tr><td><h5>Peak Torque Speed</h5></td><td><p>1600 rpm</p></td></tr><tr><td><h5>Rated Speed</h5></td><td><p>2200 rpm</p></td></tr><tr><td><h5>Valves Per Cylinder</h5></td><td><p>2</p></td></tr></tbody></table></div></div></div><div class="accordion2_component"><div class="accordion2_top"><div class="text-size-medium text-weight-bold">Hydraulics</div><div class="accordion2_icon w-embed"><svg width="100%" height="100%" viewBox="0 0 32 32" fill="none" xmlns="http://www.w3.org/2000/svg"><path d="M25.3333 15.667V16.3336C25.3333 16.7018 25.0349 17.0003 24.6667 17.0003H17V24.667C17 25.0351 16.7015 25.3336 16.3333 25.3336H15.6667C15.2985 25.3336 15 25.0351 15 24.667V17.0003H7.3333C6.96511 17.0003 6.66663 16.7018 6.66663 16.3336V15.667C6.66663 15.2988 6.96511 15.0003 7.3333 15.0003H15V7.33365C15 6.96546 15.2985 6.66699 15.6667 6.66699H16.3333C16.7015 6.66699 17 6.96546 17 7.33365V15.0003H24.6667C25.0349 15.0003 25.3333 15.2988 25.3333 15.667Z" fill="currentColor"></path></svg></div></div><div style="width: 1118px; height: 0px;" class="accordion2_bottom"><div class="margin-bottom margin-small"><table class='custom-table-style'><tbody><tr><td><h5>Backhoe Controls</h5></td><td><p>2-lever mechanical standard; pilot control with pattern select with electrohydraulic (EH) auxiliary functions optional </p></td></tr><tr><td><h5>Backhoe Lift Mode System Relief Pressure</h5></td><td><p>4000 psi</p></td></tr><tr><td><h5>Backhoe Lift Mode System Relief Pressure</h5></td><td><p>27579 kPa</p></td></tr><tr><td><h5>Backhoe Pump Flow</h5></td><td><p>43 gpm</p></td></tr><tr><td><h5>Backhoe Pump Flow</h5></td><td><p>162.8 L/min</p></td></tr><tr><td><h5>Backhoe System Relief Pressure</h5></td><td><p>3625 psi</p></td></tr><tr><td><h5>Backhoe System Relief Pressure</h5></td><td><p>24987.5 kPa</p></td></tr><tr><td><h5>Hydraulics System Type</h5></td><td><p>Pressure compensated load sensing (PCLS), axial piston pump </p></td></tr><tr><td><h5>Loader Controls</h5></td><td><p>Single-lever control with electric clutch cutoff switch and MFWD (momentary) standard; single-lever control with electric clutch cutoff switch, electrohydraulic (EH) proportional auxiliary roller, MFWD (momentary), and transmission quick-shift optional </p></td></tr><tr><td><h5>Loader Pump Flow</h5></td><td><p>43 gpm</p></td></tr><tr><td><h5>Loader Pump Flow</h5></td><td><p>162.8 L/min</p></td></tr><tr><td><h5>Loader System Relief Pressure</h5></td><td><p>3625 psi</p></td></tr><tr><td><h5>Loader System Relief Pressure</h5></td><td><p>24993.5 kPa</p></td></tr><tr><td><h5>Rated Rpm</h5></td><td><p>2200 rpm</p></td></tr></tbody></table></div></div></div><div class="accordion2_component"><div class="accordion2_top"><div class="text-size-medium text-weight-bold">Lift Capacity with Quick-Coupler Forks</div><div class="accordion2_icon w-embed"><svg width="100%" height="100%" viewBox="0 0 32 32" fill="none" xmlns="http://www.w3.org/2000/svg"><path d="M25.3333 15.667V16.3336C25.3333 16.7018 25.0349 17.0003 24.6667 17.0003H17V24.667C17 25.0351 16.7015 25.3336 16.3333 25.3336H15.6667C15.2985 25.3336 15 25.0351 15 24.667V17.0003H7.3333C6.96511 17.0003 6.66663 16.7018 6.66663 16.3336V15.667C6.66663 15.2988 6.96511 15.0003 7.3333 15.0003H15V7.33365C15 6.96546 15.2985 6.66699 15.6667 6.66699H16.3333C16.7015 6.66699 17 6.96546 17 7.33365V15.0003H24.6667C25.0349 15.0003 25.3333 15.2988 25.3333 15.667Z" fill="currentColor"></path></svg></div></div><div style="width: 1118px; height: 0px;" class="accordion2_bottom"><div class="margin-bottom margin-small"><table class='custom-table-style'><tbody><tr><td><h5>At Ground Line With Maximum Tines</h5></td><td><p>8306 lb.</p></td></tr><tr><td><h5>At Ground Line With Maximum Tines</h5></td><td><p>3767.5 kg</p></td></tr><tr><td><h5>At Ground Line With Minimum Tines</h5></td><td><p>8863 lb.</p></td></tr><tr><td><h5>At Ground Line With Minimum Tines</h5></td><td><p>4020.2 kg</p></td></tr><tr><td><h5>At Maximum Height With Maximum Tines</h5></td><td><p>4260 lb.</p></td></tr><tr><td><h5>At Maximum Height With Maximum Tines</h5></td><td><p>1932.3 kg</p></td></tr><tr><td><h5>At Maximum Height With Minimum Tines</h5></td><td><p>4558 lb.</p></td></tr><tr><td><h5>At Maximum Height With Minimum Tines</h5></td><td><p>2067.5 kg</p></td></tr><tr><td><h5>At Maximum Reach With Maximum Tines</h5></td><td><p>6617 lb.</p></td></tr><tr><td><h5>At Maximum Reach With Maximum Tines</h5></td><td><p>3001.4 kg</p></td></tr><tr><td><h5>At Maximum Reach With Minimum Tines</h5></td><td><p>7017 lb.</p></td></tr><tr><td><h5>At Maximum Reach With Minimum Tines</h5></td><td><p>3182.9 kg</p></td></tr><tr><td><h5>Below Ground Line With Maximum Tines</h5></td><td><p>7.8 in.</p></td></tr><tr><td><h5>Below Ground Line With Minimum Tines</h5></td><td><p>7.3 in.</p></td></tr><tr><td><h5>Below Ground Line With Minimum Tines</h5></td><td><p>185.4 mm</p></td></tr><tr><td><h5>Hydraulic Capacity Maximum Tines</h5></td><td><p>60 in.</p></td></tr><tr><td><h5>Hydraulic Capacity Maximum Tines</h5></td><td><p>1524 mm</p></td></tr><tr><td><h5>Hydraulic Capacity Minimum Tines</h5></td><td><p>48 in.</p></td></tr><tr><td><h5>Hydraulic Capacity Minimum Tines</h5></td><td><p>1219.2 mm</p></td></tr><tr><td><h5>Rated Capacity Of Maximum Tines</h5></td><td><p>8598 lb.</p></td></tr><tr><td><h5>Rated Capacity Of Maximum Tines</h5></td><td><p>3900 kg</p></td></tr><tr><td><h5>Rated Capacity Of Minimum Tines</h5></td><td><p>8598 lb.</p></td></tr><tr><td><h5>Rated Capacity Of Minimum Tines</h5></td><td><p>3900 kg</p></td></tr></tbody></table></div></div></div><div class="accordion2_component"><div class="accordion2_top"><div class="text-size-medium text-weight-bold">Monitoring</div><div class="accordion2_icon w-embed"><svg width="100%" height="100%" viewBox="0 0 32 32" fill="none" xmlns="http://www.w3.org/2000/svg"><path d="M25.3333 15.667V16.3336C25.3333 16.7018 25.0349 17.0003 24.6667 17.0003H17V24.667C17 25.0351 16.7015 25.3336 16.3333 25.3336H15.6667C15.2985 25.3336 15 25.0351 15 24.667V17.0003H7.3333C6.96511 17.0003 6.66663 16.7018 6.66663 16.3336V15.667C6.66663 15.2988 6.96511 15.0003 7.3333 15.0003H15V7.33365C15 6.96546 15.2985 6.66699 15.6667 6.66699H16.3333C16.7015 6.66699 17 6.96546 17 7.33365V15.0003H24.6667C25.0349 15.0003 25.3333 15.2988 25.3333 15.667Z" fill="currentColor"></path></svg></div></div><div style="width: 1118px; height: 0px;" class="accordion2_bottom"><div class="margin-bottom margin-small"><table class='custom-table-style'><tbody><tr><td><h5>Aftertreatment Temperature High</h5></td><td><p>Indicator light </p></td></tr><tr><td><h5>Alternator, Low Voltage</h5></td><td><p>Indicator light, Audible</p></td></tr><tr><td><h5>Diesel-Exhaust Fluid (DEF) Level</h5></td><td><p>Indicator light, Audible, Digital </p></td></tr><tr><td><h5>Engine Air Filter Restriction</h5></td><td><p>Indicator light, Audible, Digital</p></td></tr><tr><td><h5>Engine Coolant Temperature</h5></td><td><p>Indicator light, Audible, Gauge</p></td></tr><tr><td><h5>Engine Oil Pressure</h5></td><td><p>Indicator light, Audible</p></td></tr><tr><td><h5>Engine Preheat</h5></td><td><p>Indicator light, Digital </p></td></tr><tr><td><h5>Engine Rpm</h5></td><td><p>Digital </p></td></tr><tr><td><h5>Fuel Level</h5></td><td><p>Indicator light, Audible, Gauge, Digital </p></td></tr><tr><td><h5>Hourmeter</h5></td><td><p>Digital </p></td></tr><tr><td><h5>Hydraulic Oil Filter Restriction</h5></td><td><p>Audible, Digital </p></td></tr><tr><td><h5>Hydraulics Enabled</h5></td><td><p>Indicator light </p></td></tr><tr><td><h5>Job Timer</h5></td><td><p>Digital </p></td></tr><tr><td><h5>Machine Information And Configuration</h5></td><td><p>Digital </p></td></tr><tr><td><h5>MFWD Active</h5></td><td><p>Indicator light </p></td></tr><tr><td><h5>Park Brake On/Off</h5></td><td><p>Indicator light</p></td></tr><tr><td><h5>Seat Belt Reminder</h5></td><td><p>Indicator light, Digital </p></td></tr><tr><td><h5>Service Code Indicator</h5></td><td><p>Indicator light</p></td></tr><tr><td><h5>Sight Gauges</h5></td><td><p>Hydraulic Reservoir</p></td></tr><tr><td><h5>Stop Indicator</h5></td><td><p>Indicator light, Audible </p></td></tr><tr><td><h5>System Voltage</h5></td><td><p>Digital </p></td></tr><tr><td><h5>Torque Converter Oil Temp</h5></td><td><p>Indicator light, Audible, Gauge, Digital </p></td></tr></tbody></table></div></div></div><div class="accordion2_component"><div class="accordion2_top"><div class="text-size-medium text-weight-bold">Operating Weights</div><div class="accordion2_icon w-embed"><svg width="100%" height="100%" viewBox="0 0 32 32" fill="none" xmlns="http://www.w3.org/2000/svg"><path d="M25.3333 15.667V16.3336C25.3333 16.7018 25.0349 17.0003 24.6667 17.0003H17V24.667C17 25.0351 16.7015 25.3336 16.3333 25.3336H15.6667C15.2985 25.3336 15 25.0351 15 24.667V17.0003H7.3333C6.96511 17.0003 6.66663 16.7018 6.66663 16.3336V15.667C6.66663 15.2988 6.96511 15.0003 7.3333 15.0003H15V7.33365C15 6.96546 15.2985 6.66699 15.6667 6.66699H16.3333C16.7015 6.66699 17 6.96546 17 7.33365V15.0003H24.6667C25.0349 15.0003 25.3333 15.2988 25.3333 15.667Z" fill="currentColor"></path></svg></div></div><div style="width: 1118px; height: 0px;" class="accordion2_bottom"><div class="margin-bottom margin-small"><table class='custom-table-style'><tbody><tr><td><h5>Backhoe Bucket Coupler</h5></td><td><p>138 lb.</p></td></tr><tr><td><h5>Backhoe Bucket Coupler</h5></td><td><p>62.6 kg</p></td></tr><tr><td><h5>Cab</h5></td><td><p>580 lb.</p></td></tr><tr><td><h5>Cab</h5></td><td><p>263.1 kg</p></td></tr><tr><td><h5>Extendable Dipperstick</h5></td><td><p>490 lb.</p></td></tr><tr><td><h5>Extendable Dipperstick</h5></td><td><p>222.3 kg</p></td></tr><tr><td><h5>Front Loader Coupler</h5></td><td><p>566 lb.</p></td></tr><tr><td><h5>Front Loader Coupler</h5></td><td><p>256.7 kg</p></td></tr><tr><td><h5>Mechanical Front-Wheel Drive With Tires</h5></td><td><p>485 lb.</p></td></tr><tr><td><h5>Mechanical Front-Wheel Drive With Tires</h5></td><td><p>220 kg</p></td></tr><tr><td><h5>Operator And Standard Equipment With Full Fuel Tank</h5></td><td><p>17081 lb.</p></td></tr><tr><td><h5>Standard With Bumper</h5></td><td><p>15872 lb.</p></td></tr><tr><td><h5>Standard With Bumper</h5></td><td><p>7199.4 kg</p></td></tr><tr><td><h5>Typical With Cab, Extendible Dipperstick, And 750-Lb Counterweight</h5></td><td><p>17692 lb.</p></td></tr><tr><td><h5>Typical With Cab, Extendible Dipperstick, And 340-Kg Counterweight</h5></td><td><p>8025 kg</p></td></tr></tbody></table></div></div></div><div class="accordion2_component"><div class="accordion2_top"><div class="text-size-medium text-weight-bold">Operator Station</div><div class="accordion2_icon w-embed"><svg width="100%" height="100%" viewBox="0 0 32 32" fill="none" xmlns="http://www.w3.org/2000/svg"><path d="M25.3333 15.667V16.3336C25.3333 16.7018 25.0349 17.0003 24.6667 17.0003H17V24.667C17 25.0351 16.7015 25.3336 16.3333 25.3336H15.6667C15.2985 25.3336 15 25.0351 15 24.667V17.0003H7.3333C6.96511 17.0003 6.66663 16.7018 6.66663 16.3336V15.667C6.66663 15.2988 6.96511 15.0003 7.3333 15.0003H15V7.33365C15 6.96546 15.2985 6.66699 15.6667 6.66699H16.3333C16.7015 6.66699 17 6.96546 17 7.33365V15.0003H24.6667C25.0349 15.0003 25.3333 15.2988 25.3333 15.667Z" fill="currentColor"></path></svg></div></div><div style="width: 1118px; height: 0px;" class="accordion2_bottom"><div class="margin-bottom margin-small"><table class='custom-table-style'><tbody><tr><td><h5>Operator Station Type</h5></td><td><p>Fully enclosed cab, isolation mounted, ROPS/FOPS, left/right access, with molded roof; optional quarter cab (front glass only) and canopy </p></td></tr></tbody></table></div></div></div><div class="accordion2_component"><div class="accordion2_top"><div class="text-size-medium text-weight-bold">Powertrain</div><div class="accordion2_icon w-embed"><svg width="100%" height="100%" viewBox="0 0 32 32" fill="none" xmlns="http://www.w3.org/2000/svg"><path d="M25.3333 15.667V16.3336C25.3333 16.7018 25.0349 17.0003 24.6667 17.0003H17V24.667C17 25.0351 16.7015 25.3336 16.3333 25.3336H15.6667C15.2985 25.3336 15 25.0351 15 24.667V17.0003H7.3333C6.96511 17.0003 6.66663 16.7018 6.66663 16.3336V15.667C6.66663 15.2988 6.96511 15.0003 7.3333 15.0003H15V7.33365C15 6.96546 15.2985 6.66699 15.6667 6.66699H16.3333C16.7015 6.66699 17 6.96546 17 7.33365V15.0003H24.6667C25.0349 15.0003 25.3333 15.2988 25.3333 15.667Z" fill="currentColor"></path></svg></div></div><div style="width: 1118px; height: 0px;" class="accordion2_bottom"><div class="margin-bottom margin-small"><table class='custom-table-style'><tbody><tr><td><h5>Axle Oscillation Stop To Stop, Front Axle</h5></td><td><p>22 degree (angle)</p></td></tr><tr><td><h5>Brakes</h5></td><td><p>Conform to ISO 3450 </p></td></tr><tr><td><h5>Bucket Clearance Circle, With Brakes, With MFWD Axle</h5></td><td><p>33, 0 ft, in.</p></td></tr><tr><td><h5>Bucket Clearance Circle, With Brakes, With MFWD Axle</h5></td><td><p>10.1 m</p></td></tr><tr><td><h5>Bucket Clearance Circle, Without Brakes, With MFWD Axle</h5></td><td><p>35, 6 ft, in.</p></td></tr><tr><td><h5>Bucket Clearance Circle, Without Brakes, With MFWD Axle</h5></td><td><p>10.82 m</p></td></tr><tr><td><h5>Bucket Clearance Circle, With Brakes, With Non-Powered Front Axle</h5></td><td><p>32, 9 ft, in.</p></td></tr><tr><td><h5>Bucket Clearance Circle, With Brakes, With Non-Powered Front Axle</h5></td><td><p>9.98 m</p></td></tr><tr><td><h5>Bucket Clearance Circle, Without Brakes, With Non-Powered Front Axle</h5></td><td><p>35, 0 ft, in.</p></td></tr><tr><td><h5>Bucket Clearance Circle, Without Brakes, With Non-Powered Front Axle</h5></td><td><p>10.67 m</p></td></tr><tr><td><h5>Conditions For Measuring Travel Speeds</h5></td><td><p>Power-Shift, Standard Transmission with Tire Size 19.5L-24 Rear Tires</p></td></tr><tr><td><h5>Curb-Turning Radius, With Brakes, With MFWD Axle</h5></td><td><p>11, 7 ft, in.</p></td></tr><tr><td><h5>Curb-Turning Radius, With Brakes, With MFWD Axle</h5></td><td><p>3.53 m</p></td></tr><tr><td><h5>Curb-Turning Radius, With Brakes, With Non-Powered Front Axle</h5></td><td><p>11, 4 ft, in.</p></td></tr><tr><td><h5>Curb-Turning Radius, With Brakes, With Non-Powered Front Axle</h5></td><td><p>3.45 m</p></td></tr><tr><td><h5>Curb-Turning Radius, Without Brakes, With MFWD Axle</h5></td><td><p>13, 2 ft, in.</p></td></tr><tr><td><h5>Curb-Turning Radius, Without Brakes, With MFWD Axle</h5></td><td><p>4 m</p></td></tr><tr><td><h5>Curb-Turning Radius, Without Brakes, With Non-Powered Front Axle</h5></td><td><p>12, 10 ft, in.</p></td></tr><tr><td><h5>Curb-Turning Radius, Without Brakes, With Non-Powered Front Axle</h5></td><td><p>3.91 m</p></td></tr><tr><td><h5>Front Axle, Dynamic Rating</h5></td><td><p>19800 lb.</p></td></tr><tr><td><h5>Front Axle, Dynamic Rating</h5></td><td><p>8981.45 kg</p></td></tr><tr><td><h5>Front Axle, Sae J43 Rating</h5></td><td><p>12000 lb.</p></td></tr><tr><td><h5>Front Axle, Sae J43 Rating</h5></td><td><p>5443.1 kg</p></td></tr><tr><td><h5>Front Axle, Static Rating</h5></td><td><p>58400 lb.</p></td></tr><tr><td><h5>Front Axle, Static Rating</h5></td><td><p>26490 kg</p></td></tr><tr><td><h5>Front Axle, Ultimate Rating</h5></td><td><p>97000 lb.</p></td></tr><tr><td><h5>Front Axle, Ultimate Rating</h5></td><td><p>43998.5 kg</p></td></tr><tr><td><h5>Gear 4, Forward Maximum Speed</h5></td><td><p>22.9 mph</p></td></tr><tr><td><h5>Gear 4, Forward Maximum Speed</h5></td><td><p>36.9 km/h</p></td></tr><tr><td><h5>Gear 1, Forward Maximum Speed</h5></td><td><p>3.3 mph</p></td></tr><tr><td><h5>Gear 1, Forward Maximum Speed</h5></td><td><p>5.3 km/h</p></td></tr><tr><td><h5>Gear 1, Reverse Maximum Speed</h5></td><td><p>4.2 mph</p></td></tr><tr><td><h5>Gear 1, Reverse Maximum Speed</h5></td><td><p>6.76 km/h</p></td></tr><tr><td><h5>Gear 3, Forward Maximum Speed</h5></td><td><p>12.6 mph</p></td></tr><tr><td><h5>Gear 3, Forward Maximum Speed</h5></td><td><p>20.29 km/h</p></td></tr><tr><td><h5>Gear 3, Reverse Maximum Speed</h5></td><td><p>12.4 mph</p></td></tr><tr><td><h5>Gear 3, Reverse Maximum Speed</h5></td><td><p>20 km/h</p></td></tr><tr><td><h5>Gear 2, Forward Maximum Speed</h5></td><td><p>6.1 mph</p></td></tr><tr><td><h5>Gear 2, Forward Maximum Speed</h5></td><td><p>9.8 km/h</p></td></tr><tr><td><h5>Gear 2, Reverse Maximum Speed</h5></td><td><p>7.7 mph</p></td></tr><tr><td><h5>Gear 2, Reverse Maximum Speed</h5></td><td><p>12.4 km/h</p></td></tr><tr><td><h5>Maximum Axle Torque</h5></td><td><p>46100 lb.</p></td></tr><tr><td><h5>Maximum Axle Torque</h5></td><td><p>20913.91 kg</p></td></tr><tr><td><h5>Maximum Steer Angle, Mechanical Front-Wheel Drive (MFWD) Axle</h5></td><td><p>52 degree (angle)</p></td></tr><tr><td><h5>Maximum Steer Angle, Non-Powered Front Axle</h5></td><td><p>55 degree (angle)</p></td></tr><tr><td><h5>Mechanical Front Wheel Drive Axle Differential Type</h5></td><td><p>Automatic, limited-slip traction control </p></td></tr><tr><td><h5>MFWD Axle Final Drives And Gears</h5></td><td><p>Heavy duty, outboard planetary final drives distribute shock loads over 3 gears</p></td></tr><tr><td><h5>MFWD Axle Total Ratio</h5></td><td><p>14.759:1 </p></td></tr><tr><td><h5>Number Of Gears Forward</h5></td><td><p>5</p></td></tr><tr><td><h5>Number Of Gears Reverse</h5></td><td><p>3</p></td></tr><tr><td><h5>Number Of Steering Wheel Turns (Lock To Lock) With MFWD Axle</h5></td><td><p>3.6</p></td></tr><tr><td><h5>Number Of Steering Wheel Turns (Lock To Lock) With Non-Powered Front Axle</h5></td><td><p>4.3</p></td></tr><tr><td><h5>Rear Axle Differential Type</h5></td><td><p>Foot actuated, hydraulically engaged 100% mechanical lock </p></td></tr><tr><td><h5>Rear Axle, Dynamic Rating</h5></td><td><p>22000 lb.</p></td></tr><tr><td><h5>Rear Axle, Dynamic Rating</h5></td><td><p>9979.03 kg</p></td></tr><tr><td><h5>Rear Axle Final Drives And Gears</h5></td><td><p>Heavy duty, outboard planetary final drives distribute shock loads over 4 gears </p></td></tr><tr><td><h5>Rear Axle, SAE J43 Rating</h5></td><td><p>15400 lb.</p></td></tr><tr><td><h5>Rear Axle, SAE J43 Rating</h5></td><td><p>6985.3 kg</p></td></tr><tr><td><h5>Rear Axle, Static Rating</h5></td><td><p>58400 lb.</p></td></tr><tr><td><h5>Rear Axle, Static Rating</h5></td><td><p>26496.91 kg</p></td></tr><tr><td><h5>Rear Axle Total Ratio</h5></td><td><p>19.911:1 </p></td></tr><tr><td><h5>Rear Axle, Ultimate Rating</h5></td><td><p>97000 lb.</p></td></tr><tr><td><h5>Rear Axle, Ultimate Rating</h5></td><td><p>43998.5 kg</p></td></tr><tr><td><h5>Rear Differential Lock Pressure</h5></td><td><p>305 psi</p></td></tr><tr><td><h5>Rear Differential Lock Pressure</h5></td><td><p>2102.72 kPa</p></td></tr><tr><td><h5>Service Brakes</h5></td><td><p>Power assisted, hydraulic wet disc, mounted inboard, self adjusting and self equalizing </p></td></tr><tr><td><h5>Service Brakes Friction Disc Area Per Side</h5></td><td><p>141900 mmByMm</p></td></tr><tr><td><h5>Shift Control Type</h5></td><td><p>Electric forward-neutral-reverse control lever with neutral start interlock</p></td></tr><tr><td><h5>Steering Pressure</h5></td><td><p>3625 psi</p></td></tr><tr><td><h5>Steering Pressure</h5></td><td><p>24987.5 kPa</p></td></tr><tr><td><h5>Steering Type</h5></td><td><p>Hydrostatic Power Steering and Emergency Steering (ISO 5010)</p></td></tr><tr><td><h5>Torque Converter</h5></td><td><p>11 in.</p></td></tr><tr><td><h5>Torque Converter</h5></td><td><p>279.4 mm</p></td></tr><tr><td><h5>Torque Converter Type</h5></td><td><p>Single stage, dual phase with 2.63:1 stall ratio</p></td></tr><tr><td><h5>Transmission Type</h5></td><td><p>5-speed, helical-cut gears, full PowerShift™ transmission with hydraulic reverser standard; electric clutch cutoff on loader lever; AutoShift transmission standard </p></td></tr></tbody></table></div></div></div><div class="accordion2_component"><div class="accordion2_top"><div class="text-size-medium text-weight-bold">Serviceability</div><div class="accordion2_icon w-embed"><svg width="100%" height="100%" viewBox="0 0 32 32" fill="none" xmlns="http://www.w3.org/2000/svg"><path d="M25.3333 15.667V16.3336C25.3333 16.7018 25.0349 17.0003 24.6667 17.0003H17V24.667C17 25.0351 16.7015 25.3336 16.3333 25.3336H15.6667C15.2985 25.3336 15 25.0351 15 24.667V17.0003H7.3333C6.96511 17.0003 6.66663 16.7018 6.66663 16.3336V15.667C6.66663 15.2988 6.96511 15.0003 7.3333 15.0003H15V7.33365C15 6.96546 15.2985 6.66699 15.6667 6.66699H16.3333C16.7015 6.66699 17 6.96546 17 7.33365V15.0003H24.6667C25.0349 15.0003 25.3333 15.2988 25.3333 15.667Z" fill="currentColor"></path></svg></div></div><div style="width: 1118px; height: 0px;" class="accordion2_bottom"><div class="margin-bottom margin-small"><table class='custom-table-style'><tbody><tr><td><h5>Diagnostics</h5></td><td><p>In-Cab Monitor Information</p></td></tr><tr><td><h5>Refill Capacity Cooling System (Cab)</h5></td><td><p>29.1 qt</p></td></tr><tr><td><h5>Refill Capacity Cooling System (Cab)</h5></td><td><p>27.54 L</p></td></tr><tr><td><h5>Refill Capacity Cooling System (Canopy)</h5></td><td><p>27.2 qt</p></td></tr><tr><td><h5>Refill Capacity Cooling System (Canopy)</h5></td><td><p>25.74 L</p></td></tr><tr><td><h5>Refill Capacity Diesel-Exhaust Fluid (DEF) Tank</h5></td><td><p>3.6 gal.</p></td></tr><tr><td><h5>Refill Capacity Diesel-Exhaust Fluid (DEF) Tank</h5></td><td><p>13.63 L</p></td></tr><tr><td><h5>Refill Capacity Engine Oil</h5></td><td><p>13.7 qt</p></td></tr><tr><td><h5>Refill Capacity Engine Oil</h5></td><td><p>12.97 L</p></td></tr><tr><td><h5>Refill Capacity Fuel Tank</h5></td><td><p>34 gal.</p></td></tr><tr><td><h5>Refill Capacity Fuel Tank</h5></td><td><p>128.7 L</p></td></tr><tr><td><h5>Refill Capacity Hydraulic Reservoir</h5></td><td><p>11.9 gal.</p></td></tr><tr><td><h5>Refill Capacity Hydraulic Reservoir</h5></td><td><p>45.06 L</p></td></tr><tr><td><h5>Refill Capacity Hydraulic System</h5></td><td><p>33.5 gal.</p></td></tr><tr><td><h5>Refill Capacity Hydraulic System</h5></td><td><p>126.87 L</p></td></tr><tr><td><h5>Refill Capacity Mechanical Front-Wheel Drive Housing Axle</h5></td><td><p>6.9 qt</p></td></tr><tr><td><h5>Refill Capacity Mechanical Front-Wheel Drive Housing Axle</h5></td><td><p>6.53 L</p></td></tr><tr><td><h5>Refill Capacity Rear Axle Differential Housing</h5></td><td><p>19 qt</p></td></tr><tr><td><h5>Refill Capacity Rear Axle Differential Housing</h5></td><td><p>17.98 L</p></td></tr><tr><td><h5>Refill Capacity Torque Converter And Transmission</h5></td><td><p>16 qt</p></td></tr><tr><td><h5>Refill Capacity Torque Converter And Transmission</h5></td><td><p>15.14 L</p></td></tr><tr><td><h5>Refill Capacity Mechanical Front-Wheel Drive Housing Planetary Each</h5></td><td><p>1 qt</p></td></tr><tr><td><h5>Refill Capacity Mechanical Front-Wheel Drive Housing Planetary Each</h5></td><td><p>0.95 L</p></td></tr></tbody></table></div></div></div></div>
